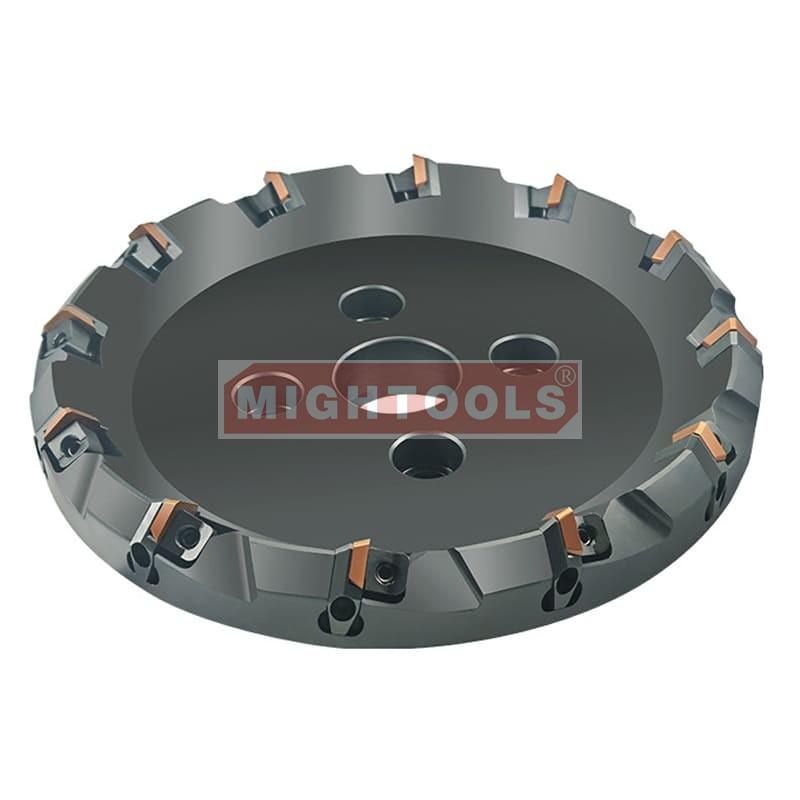

Indexable Face Mills
| Cutter Diameter (DC) | Usually 50-315mm |
| Bore Diameter (D1) / Arbor Hole | Like 22mm, 27mm, 40mm etc. |
| Maximum Depth of Cut (ap max) | 6mm, 8mm, 12mm etc. |
| Entering Angle (KAPR) | 45°, 90°, 15°（high feed）etc |
| Number of Teeth / Flutes | Z=6, Z=8,etc. |
| Insert Seat Type / Pocket Style | SN.., AP.., SE.. etc. |
| Material Group | Recommended Entering Angle | Insert Grade | Cutting Speed (Vc) |
|---|---|---|---|
| P (Steel) | 45° | Coated Carbide (e.g., TiAlN) | 150-250 m/min |
| K (Cast Iron) | 45° / 75° | Uncoated / Ceramic | 80-150 m/min |
| M (Stainless) | 10°-20° (High Speed Feed) | Tough Coated Grade | 120-200 m/min |
| N (Aluminum) | 90° | PCD / Diamond | 300-800 m/min |

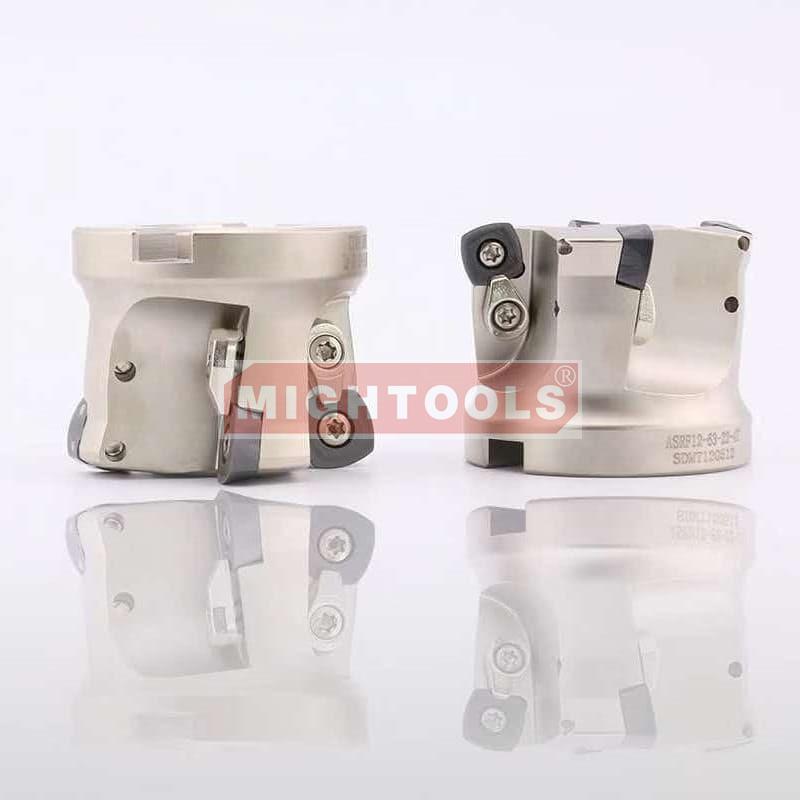

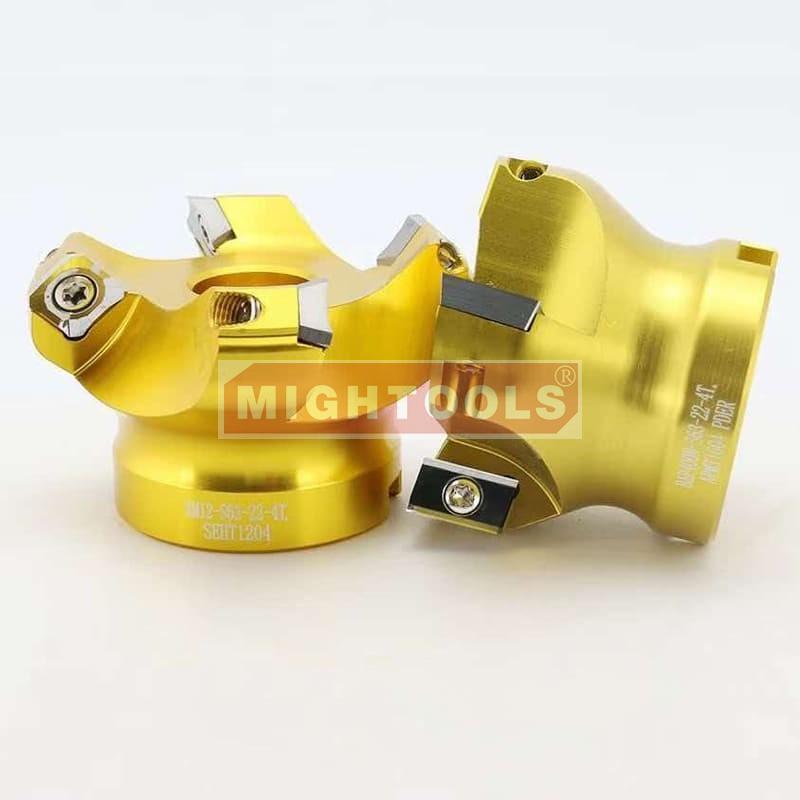

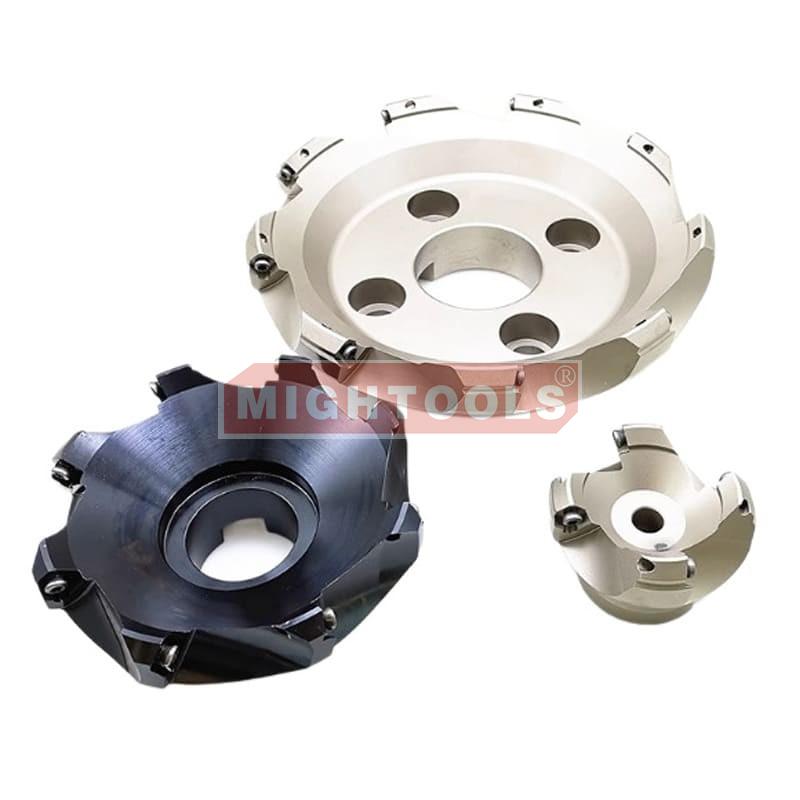

Aluminum body: Due to their light weight and low centrifugal force, they can operate at extremely high rotational speeds (up to 20,000 RPM or higher).
However, aluminum alloys have a relatively high coefficient of thermal expansion,
so the clamping force of the cutting inserts may decrease as the body heats up during high-speed rotation.
The dynamic balance grade required at the time of shipment is typically higher (e.g., G2.5).
Steel body: Due to their weight, they have a lower maximum rotational speed (typically below 10,000 RPM).
However, they offer excellent rigidity within their operating speed range and good thermal stability,
ensuring more reliable insert retention during prolonged heavy-duty cutting operations.
