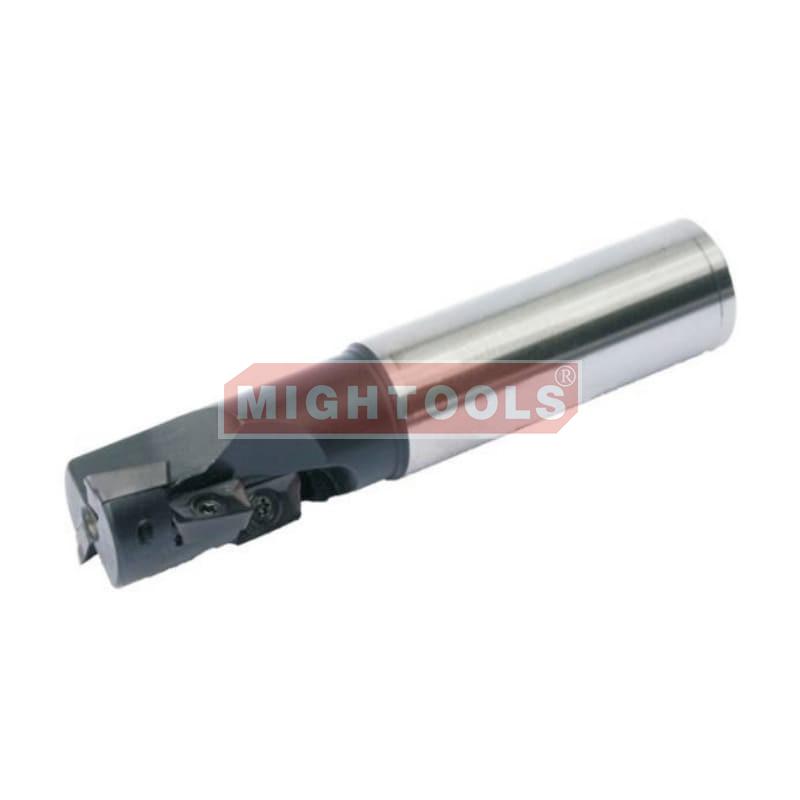

90° Square Shoulder Indexable End Mills with/without coolant
They combines the high performance of solid carbide tools with the cost-effectiveness of replaceable-insert systems.
| Type | Structural Features | Typical Applications |
|---|---|---|

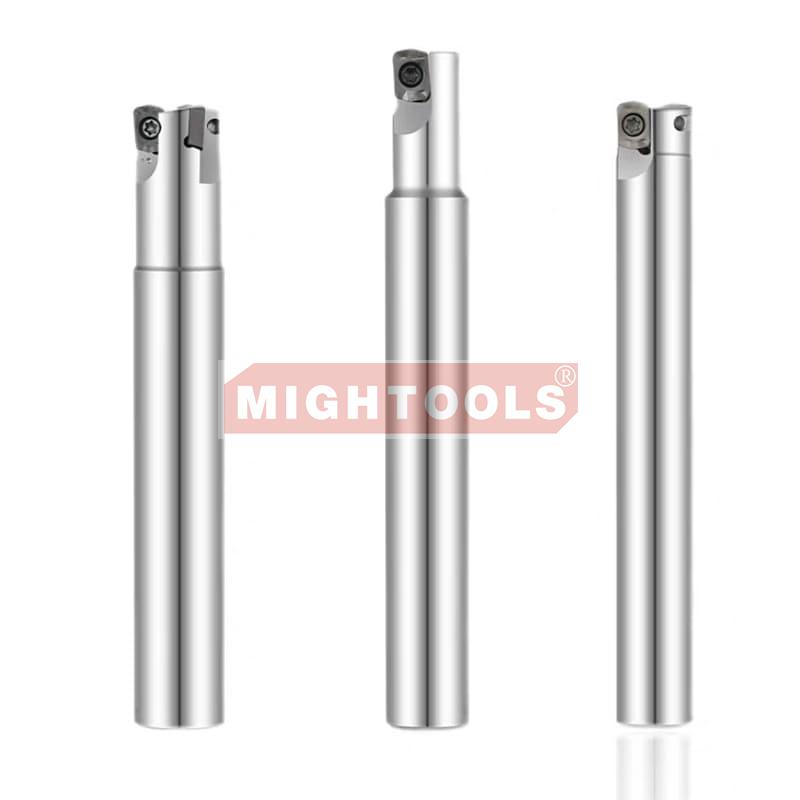

| Standard Indexable End Mills | The most common type, with diameters typically ranging from 12–50 mm. | Roughing and semi-finishing of shoulders and open slots. Also suitable for ramping (up to approx. 5° inclination) when milling closed slots. |
| Helical (Corn-cob) End Mills | Inserts arranged along a helical flute for smoother Cutting and high metal removal rates. | High-efficiency roughing, suitable for milling straight slots, shoulders, and circular interpolation milling. |

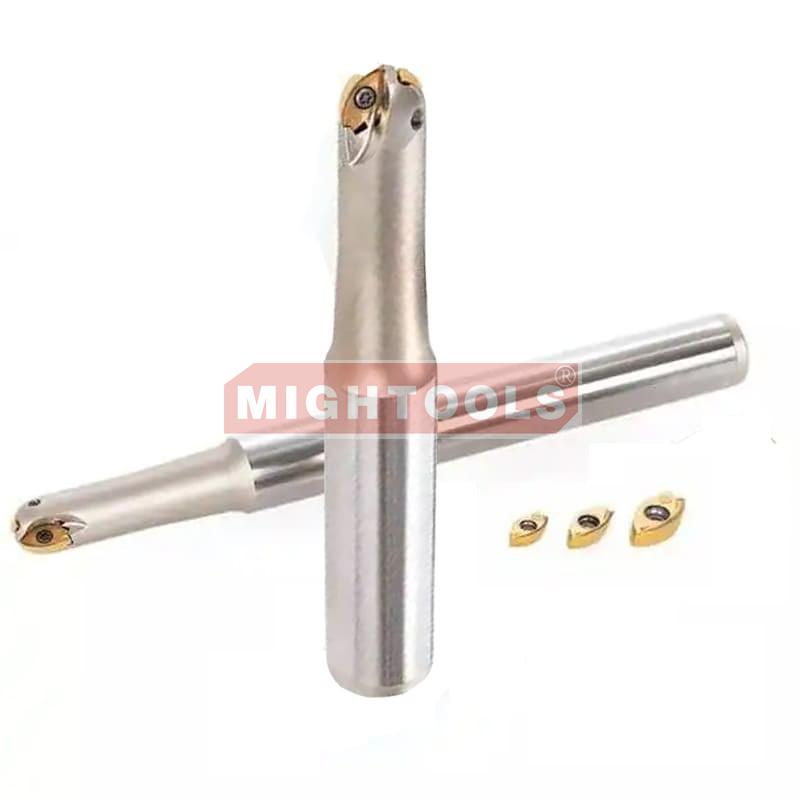

| Ball-Nose End Mills | Feature a hemispherical tip for contoured surface machining. | Roughing and semi-finishing of mold cavities and complex 3D surfaces. Surface finish is generally moderate, so they are mainly used for high-speed roughing and semi-finishing. |

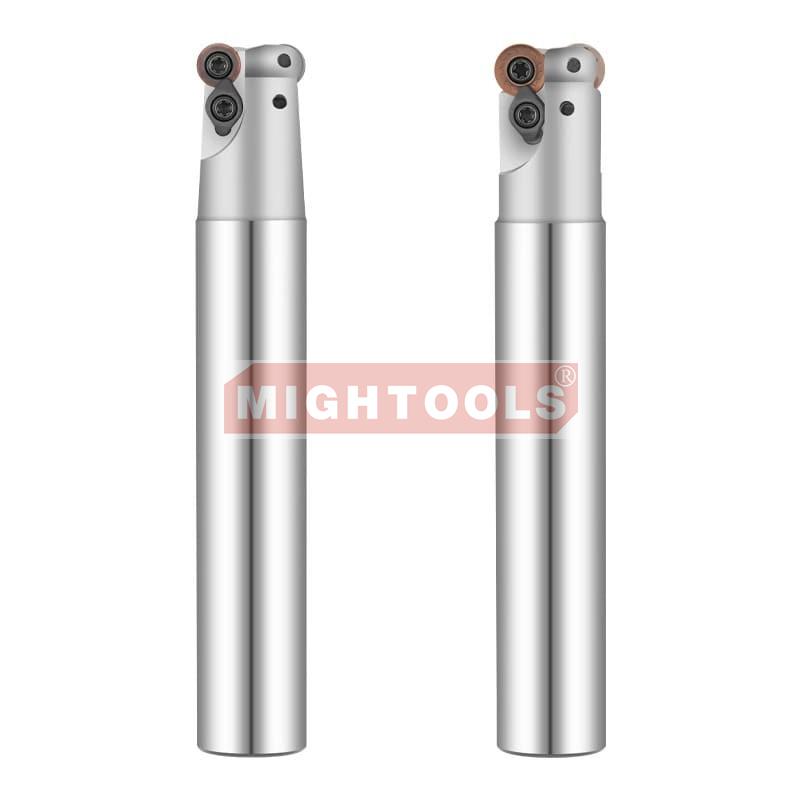

| Round-Insert (Button) End Mills | Use round inserts with extremely high edge strength. | Milling bosses, ribs, and cavities with internal corner radii, as well as contoured surfaces. |

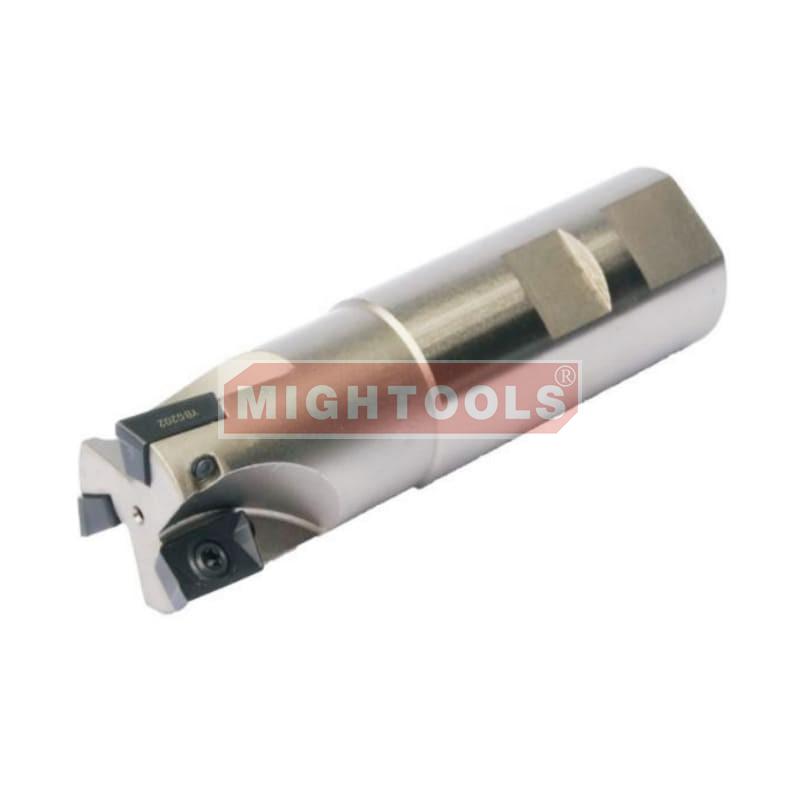

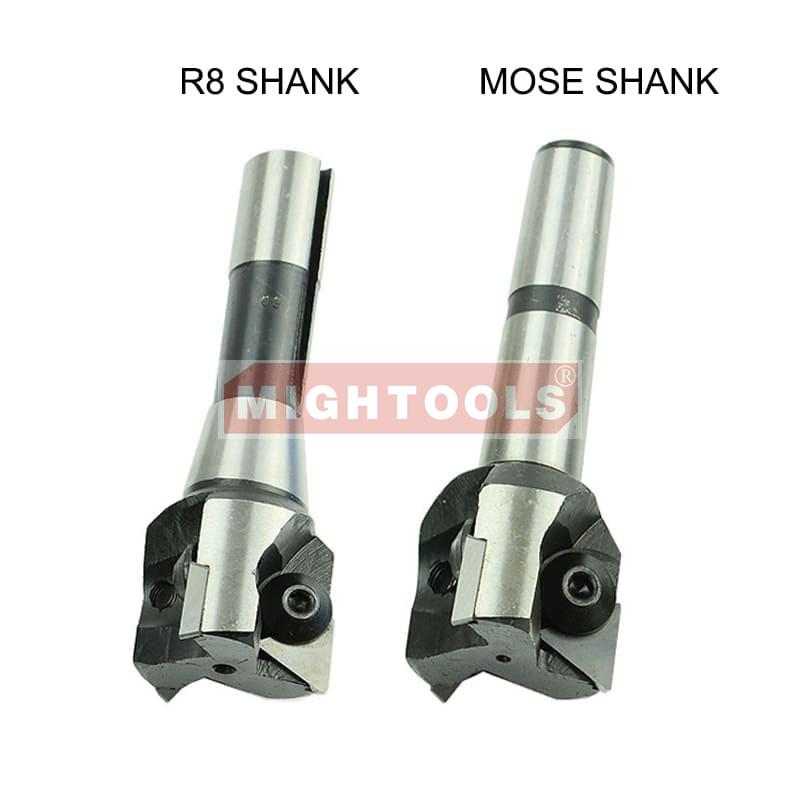

They have different shanks like Weldon Shank,R8 Shank,B20/B25 Shank,ST Shank etc.

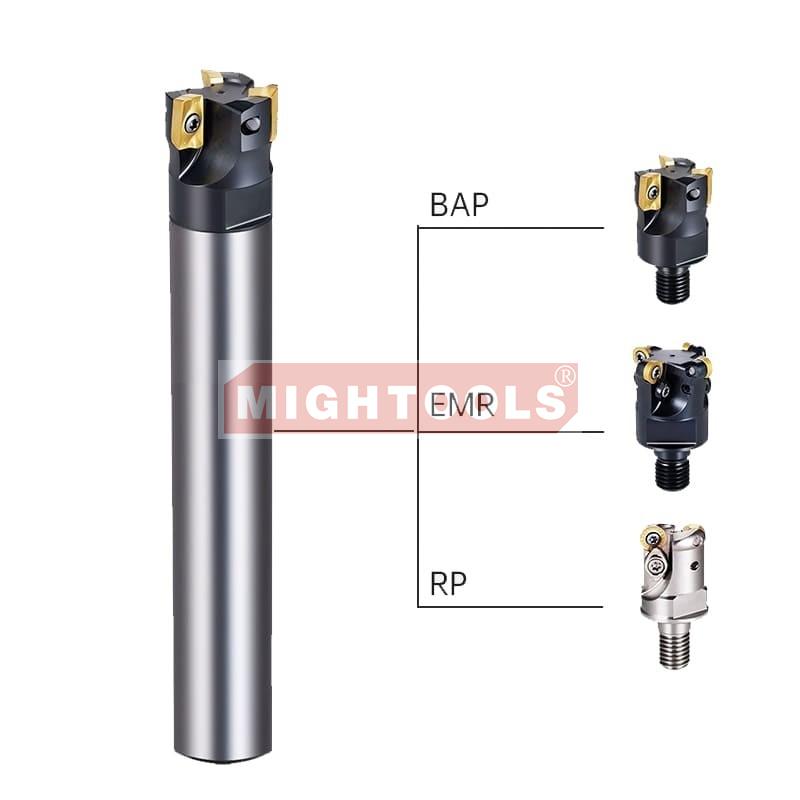

And specially it has Anti-Vibration Shank with Anti-Vibration Locking Thread Milling Cutter Head.
