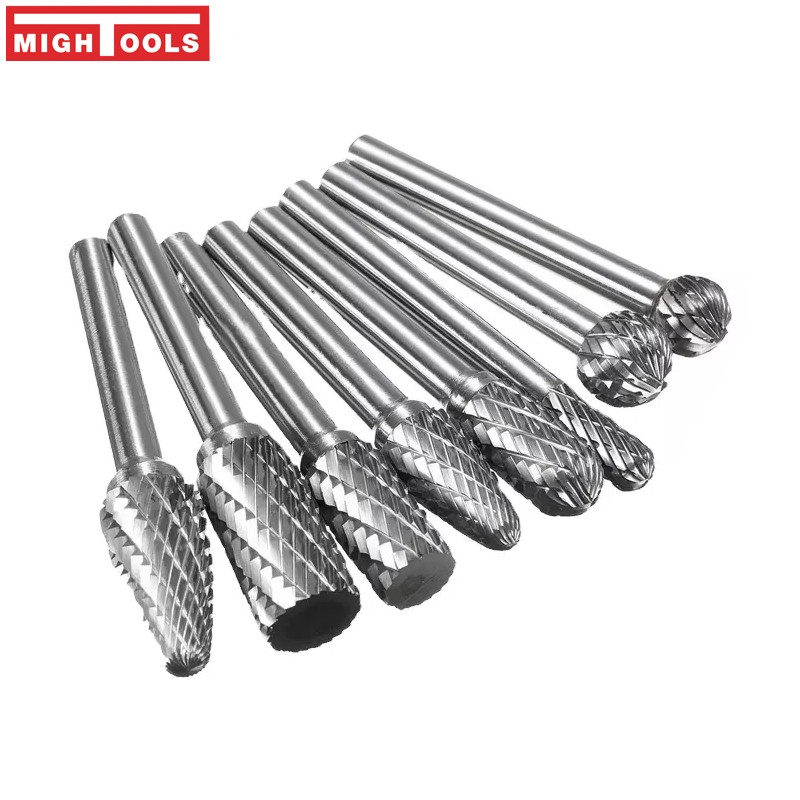

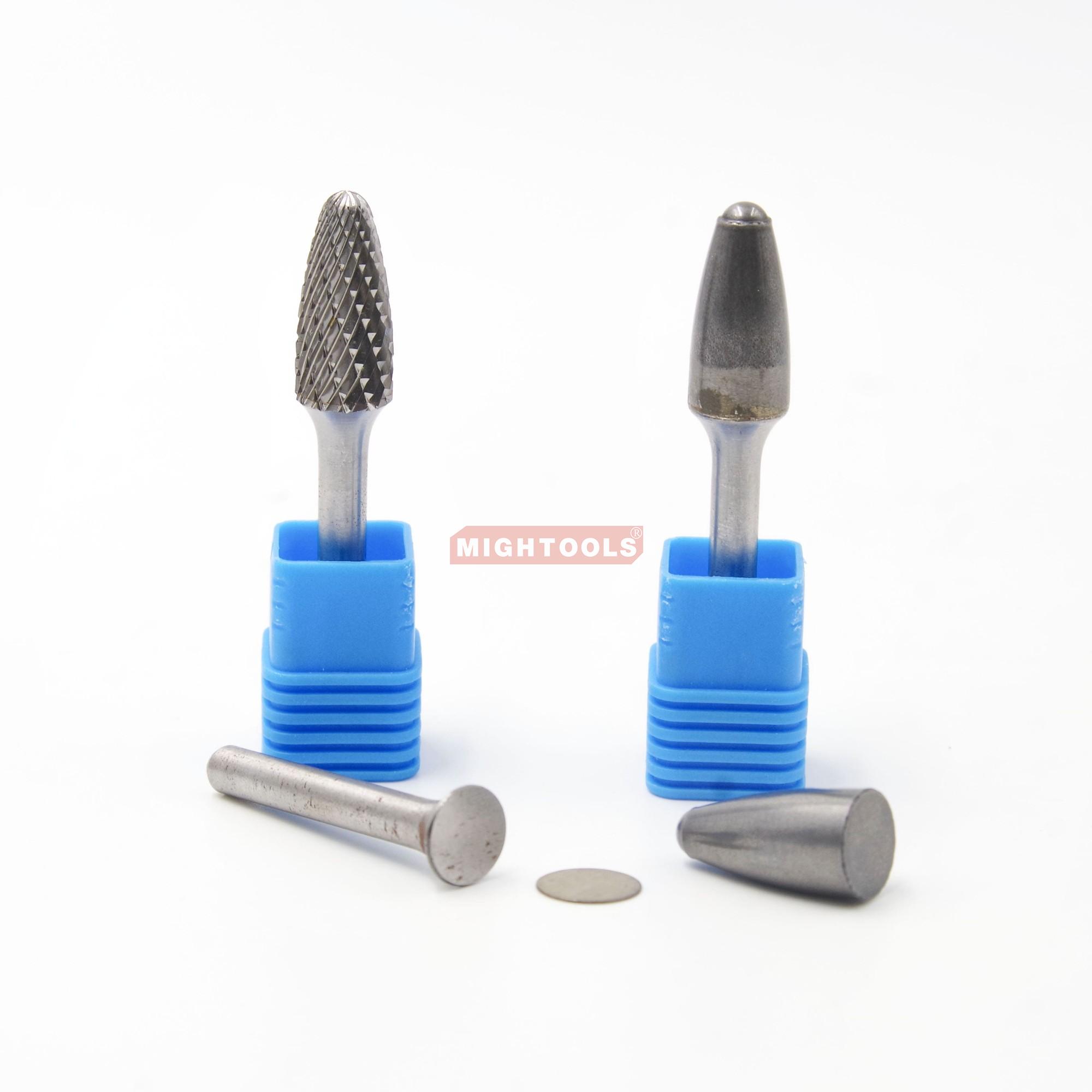

Rotary Burrs
Flexiable Shank Rotary Burrs
Carbide welding rod
| Type | English Name | Characteristics & Applications |
|---|---|---|
| Single Cut | Single Cut | Right-hand spiral flute; fast cutting speed, less prone to clogging. Suitable for ferrous metals like cast iron, copper, and aluminum. |
| Double Cut | Double Cut / Cross Cut | Features both left and right cutting angles; provides a finer surface finish. Commonly used for harder metals and is the mainstream type on the market. |
| Specialized Geometries | Alu-Cut / INOX / Steel Cut | Optimized tooth geometries specifically designed for materials like aluminum, stainless steel, and general steel to improve chip evacuation and machining results. |
Each head shape typically has a corresponding international standard type code (Type A to N) for easy selection.

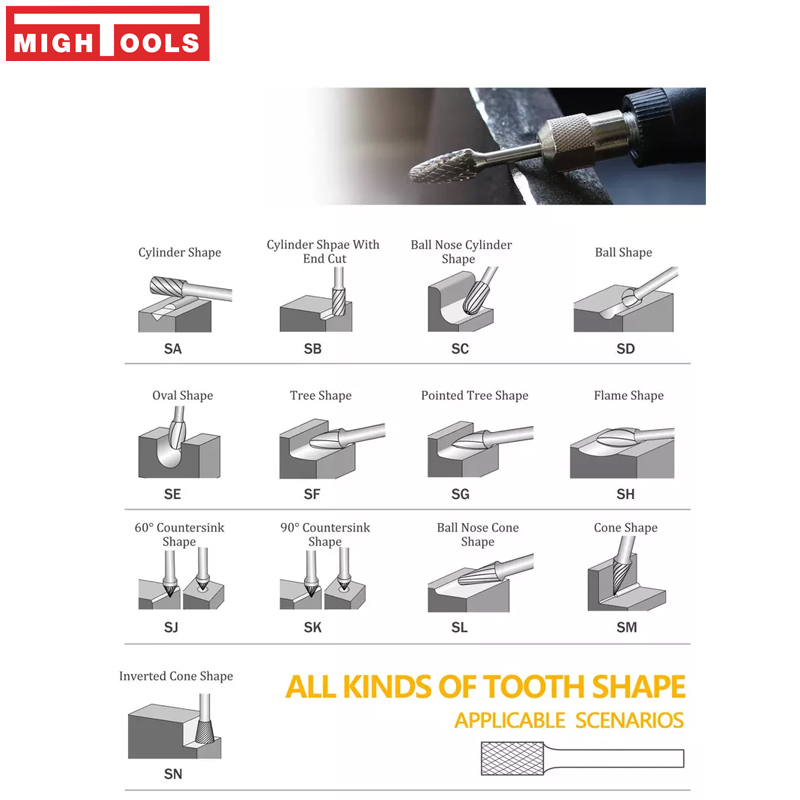

| Head Shape (Type Code) | English Name | Typical Applications |
|---|---|---|
| Cylindrical (Type A) | Cylinder | For flat milling and machining square edges and internal corners. |
| Ball Nose Cylinder (Type C) | Ball Nose Cylinder | For contouring and machining arcs/radii. |
| Ball Shape (Type D) | Ball | For rounded-end milling and surface preparation before welding. |
| Oval / Tear Drop (Type E) | Oval / Tear Drop | For circular contour machining and end milling. |
| Ball Nose Tree (Type F) | Ball Nose Tree | For multi-angle contouring, suitable for curved surfaces. |
| Pointed Tree (Type G) | Pointed Tree | For multi-angle contouring and detailed work in narrow areas. |
| Flame (Type H) | Flame | For rounding edges and welding preparation. |
| Cone / Round Cone (Type K, L, M) | Cone / Round Cone | For enlarging holes, chamfering, machining rounded edges, and reaching confined positions. |
| Inverted Cone (Type N) | Inverted Cone | For chamfering, machining special grooves, and bottom finishing. |

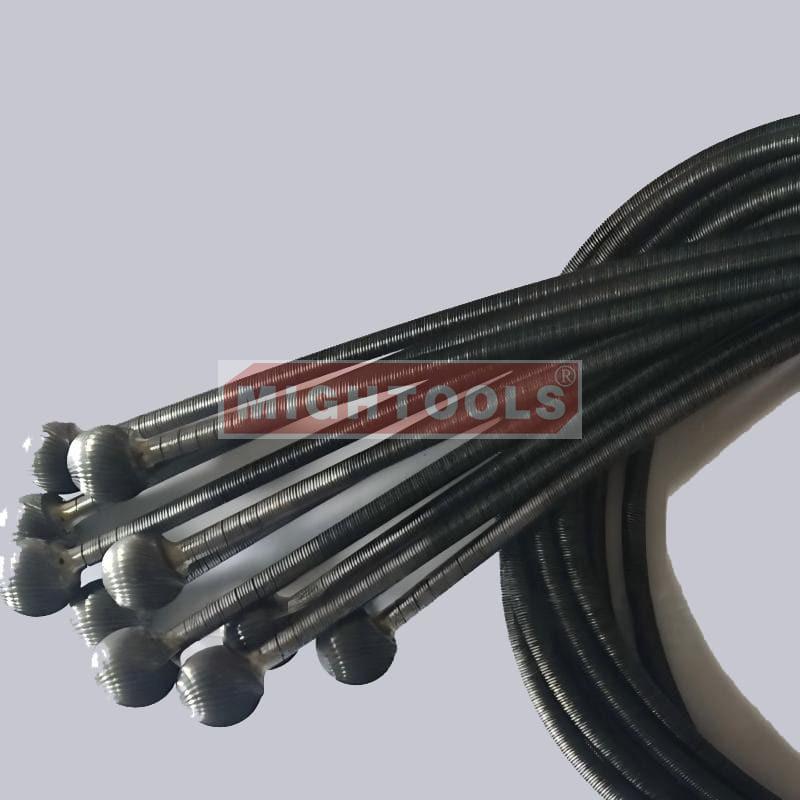

Cusomized length of handle, flexible handle is available.

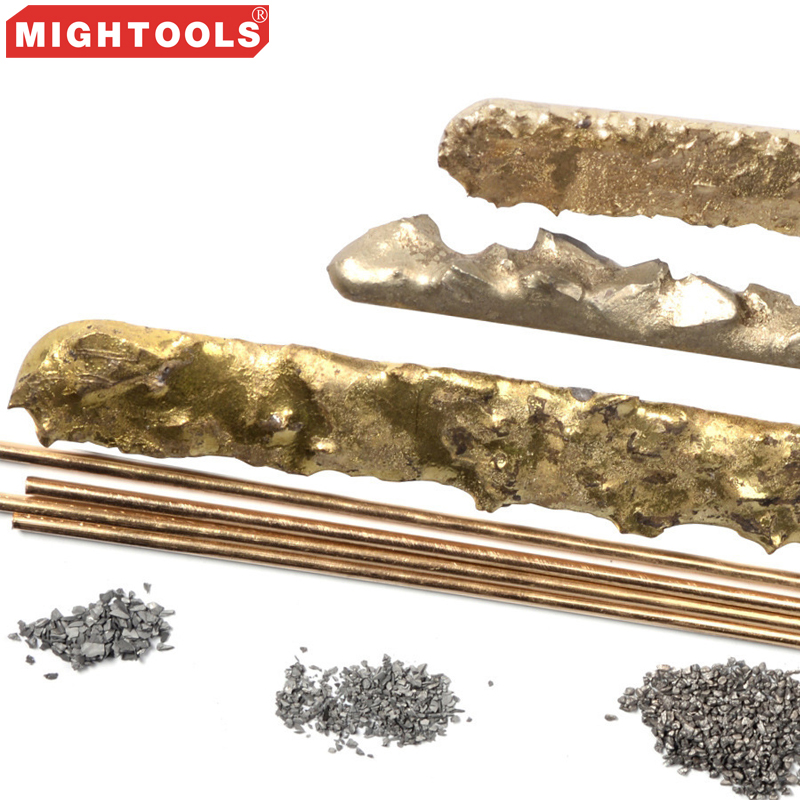

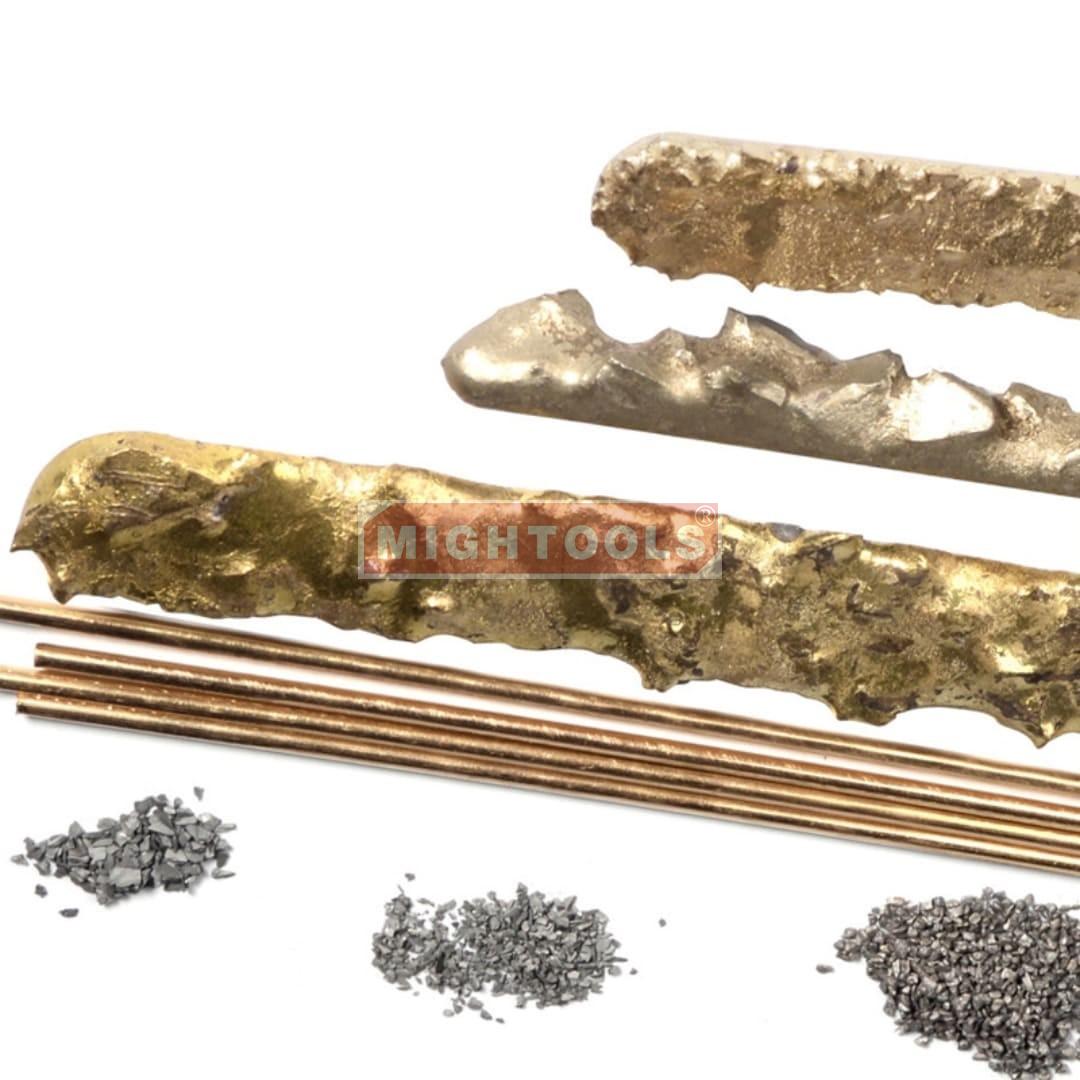

Something related-Carbide welding rod
Particle Size
1~3 3~5 4~6 5~7 8~10mm,customized
Length of rod
280mm,450mm,customized length
Carbide welding rod, also known as YD cemented carbide composite welding rod is made of granular sintered carbide
and elastic carcass alloy mixed and sintered. The sintered carbide particles are mainly cobalt-containing tungsten carbide, and its hardness can reach 89-91HRA.
The basis metal is generally a "nickel-copper" alloy with a flexural strength of about 690 Mpa and a hardness of ≥160 HB.
Tungsten carbide electrode as one of the hard surface materials, widely used on some serious wear or both cutting workpieces in
oil, mining, coal mining, geology, construction and other industries.
Such as: milling , grinding, dresser, reamer, drill pipe joint, hydraulic cutter, scraper blade, planer, core drill, pile drill, screw drill and so on.
