Screw Extractor

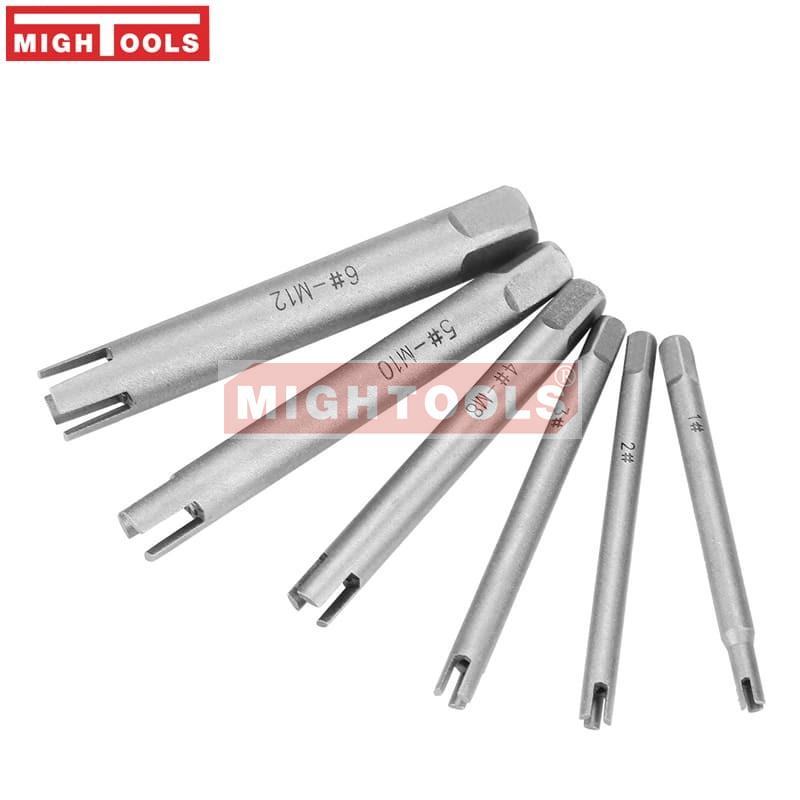

Tap Extractor

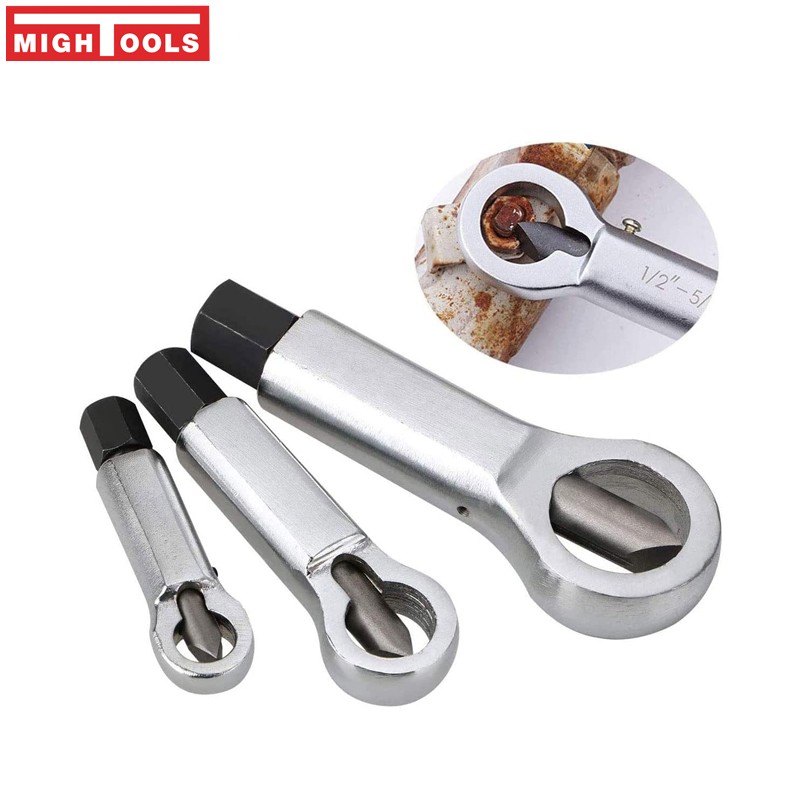

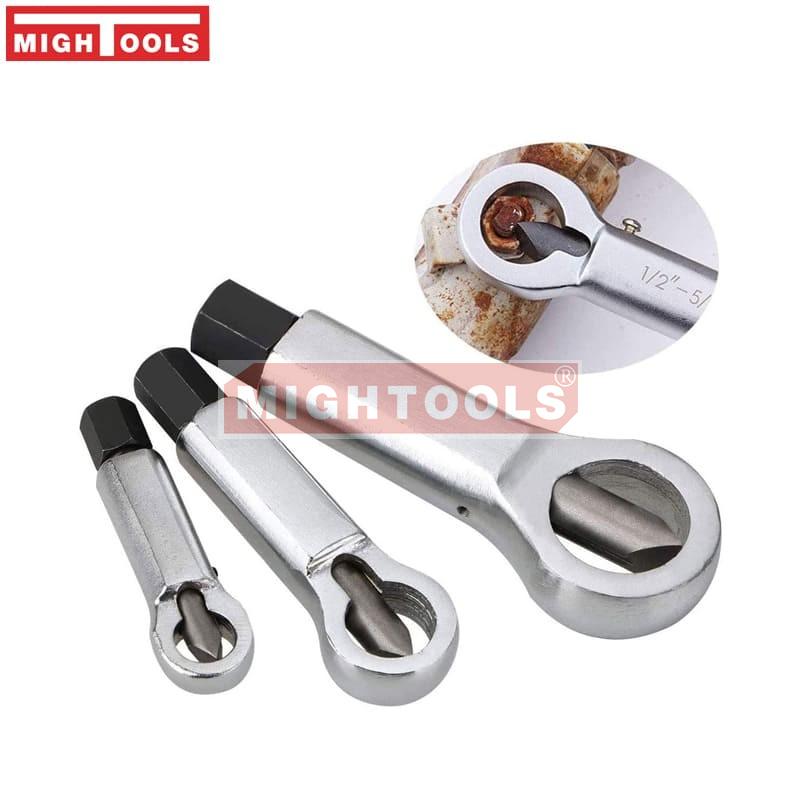

Nut Extractor
This type of extractor is specifically designed to handle stripped, broken, or rust-seized fasteners, and is mainly divided into the following three common types:
| Type | Working Principle | Key Features and Applicable Scenarios |
|---|---|---|

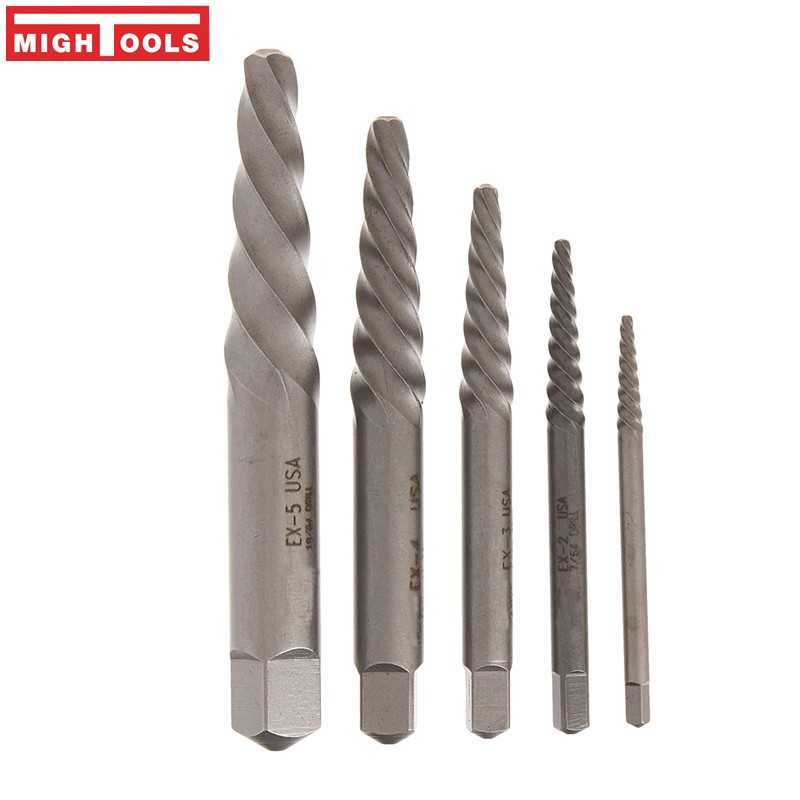

| Spiral Flute Extractor | Screwed into a pre-drilled hole, using the reverse wedging force of left-hand threads to bite into the broken screw and rotate it out. | The most common and versatile type. Suitable for most situations, especially for broken screws in harder metals. Its common name "Easy Out" originates from this type. |

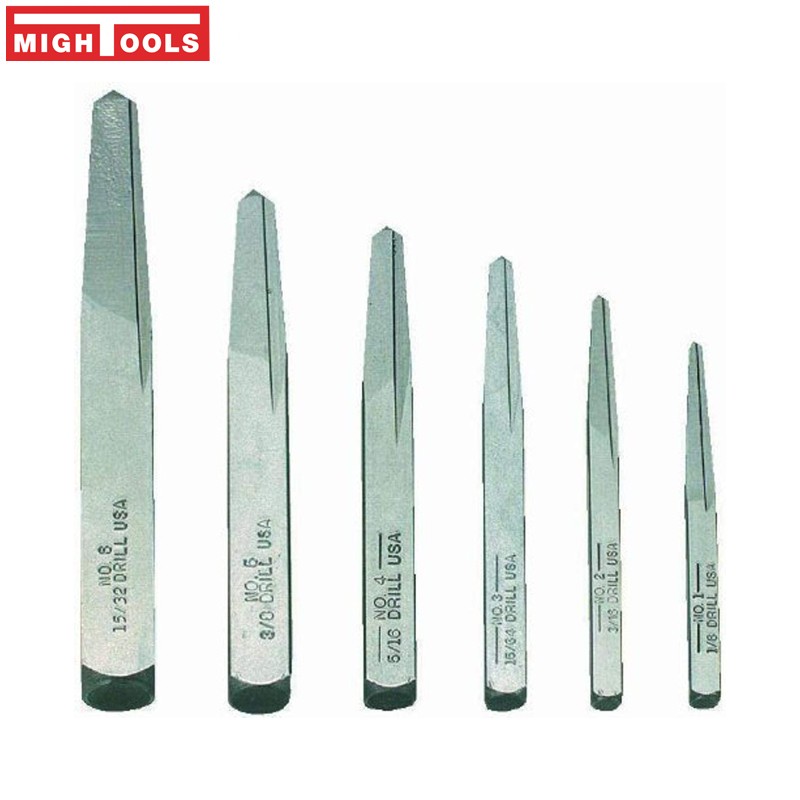

| Straight Flute Extractor | Inserted into a pre-drilled hole by tapping, using straight flutes to bite into the screw, then rotated out in reverse. | Commonly used for screw removal in softer metals (such as aluminum). The advantage is reduced wedging effect, which prevents the broken screw from becoming more tightly stuck due to expansion. Requires tapping with a copper hammer to prevent breakage. |

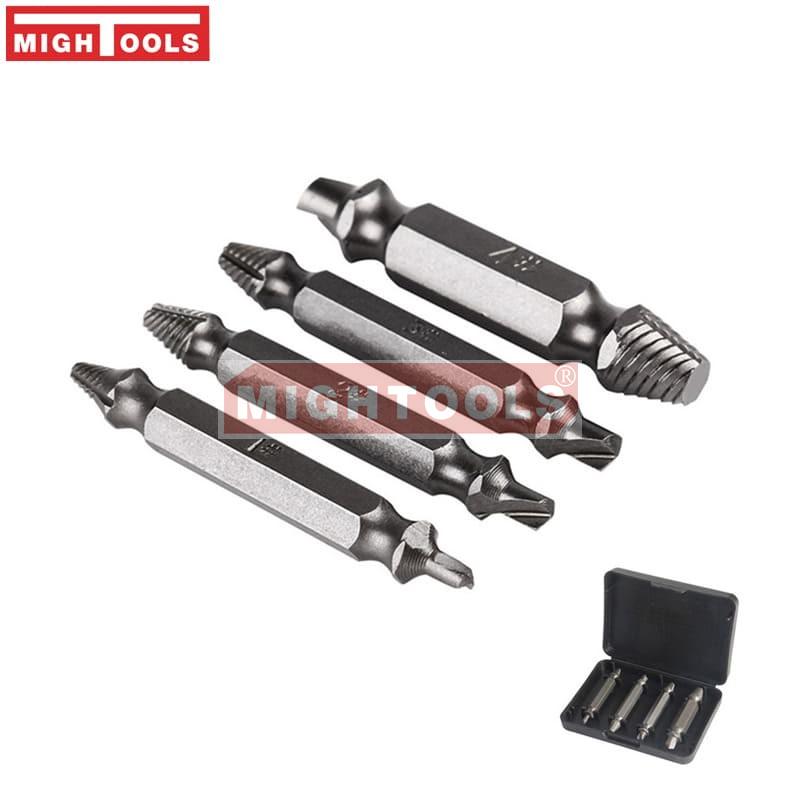

| Double-ended / Combination Extractor | One end is a drill bit and the other is an extractor, enabling integrated drilling and extraction in one tool. | Integrated functionality, portable and flexible, suitable for use in tight spaces or when rapid processing is needed. |
If Classified by Specific Purpose,it could be Stud Extractor,Nut Extractor,Threaded Fastener Extractor,Tap Extractor,Extractor Set,Drill and Extractor Set etc.
The core application of this type of extractor is removing broken fasteners without damaging the original threads. Typical scenarios include:
Industrial Manufacturing and Maintenance: Used in the manufacturing and repair of automobiles, aircraft, chemical equipment, and general machinery to handle bolts or screws that have broken due to rust or overload.
Construction and DIY: Used for screw damage issues encountered during on-site installation or home repairs.
The basic operating procedure is as follows:
Drill: Select a drill bit of the appropriate diameter and drill a pilot hole in the center of the broken screw.
Insert the Extractor: Insert the extractor (spiral or straight flute) into the pilot hole.
Rotate Out: Use a wrench or tap wrench to grip the square head of the extractor and rotate it counterclockwise to remove the broken screw.
